SUSE EIB 使用随记

Edge Image Builder（EIB）是一款用于生成定制化可引导（CRB）镜像的工具，可用于机器引导，即使在完全离线的环境中也能使用。EIB 可创建适用于 SUSE Edge 三种部署模式的镜像，支持从简单的设置（如添加用户、配置时区）到复杂的定制（如配置网络、部署多节点 Kubernetes 集群、分发工作负载，并通过 Rancher/Elemental 和 SUSE Manager 注册到集中管理平台）。EIB 以容器形式运行，便于跨平台使用，所有依赖均已打包，对宿主系统影响极小。

参考文档：https://documentation.suse.com/suse-edge/3.1/html/edge/quickstart-eib.html

Prerequisites：

1. 官方建议使用 x86_64 的 SLES 15 SP6、openSUSE Leap 15.6 或者 openSUSE Tumbleweed。
2. 节点安装了 CRI（例如 Podman）。
3. 下载最新的 SLE Micro 6.0 SelfInstall ISO。

由于 EIB 运行在容器中，所以需要从宿主机挂载一个配置目录，以便指定所需的配置，并在构建过程中让 EIB 访问所有必要的输入文件和相关资源，该目录必须遵循特定的结构。

创建配置目录：

export CONFIG_DIR=$HOME/eib
mkdir -p $CONFIG_DIR/base-images

将下载好的 SLE Micro 6.0 SelfInstall ISO 存放在该目录中：

cp /path/to/downloads/SL-Micro.x86_64-6.0-Base-SelfInstall-GM2.install.iso $CONFIG_DIR/base-images/slemicro.iso

创建 eib-iso-definition.yaml：

cat << EOF > $CONFIG_DIR/eib-iso-definition.yaml
apiVersion: 1.0
image:
  imageType: iso
  arch: x86_64
  baseImage: slemicro.iso
  outputImageName: eib-image.iso
EOF

更多 eib-iso-definition.yaml 配置可以参考文档：

1. https://github.com/suse-edge/edge-image-builder/blob/release-1.1/pkg/image/testdata/full-valid-example.yaml
2. https://github.com/suse-edge/edge-image-builder/blob/release-1.1/docs/building-images.md

配置 OS 用户，此处需要通过 openssl 创建单向加密密码：

openssl passwd -6 <your_password>

然后将输出的内容配置到 eib-iso-definition.yaml 中：

...
operatingSystem:
  users:
    - username: root
      encryptedPassword: xxx
    - username: rancher
      uid: 1000
      encryptedPassword: xxx
      createHomeDir: true
      primaryGroup: rancher
  groups:
    - name: rancher
      gid: 1000

添加时区配置到 eib-iso-definition.yaml 中：

...
operatingSystem:
...
  time:
    timezone: Asia/Shanghai
    ntp:
      forceWait: true
      servers:
        - ntp.aliyun.com
...

准备网络配置文件：

mkdir $CONFIG_DIR/network

cat << EOF > $CONFIG_DIR/network/host1.local.yaml
routes:
  config:
  - destination: 0.0.0.0/0
    next-hop-address: 172.16.16.1
    next-hop-interface: eth0
dns-resolver:
  config:
    server:
    - 172.16.16.12
    - 223.5.5.5
interfaces:
- name: eth0
  type: ethernet
  state: up
  mac-address: 00:50:56:92:6b:3b
  ipv4:
    address:
    - ip: 172.16.16.146
      prefix-length: 24
    dhcp: false
    enabled: true
  ipv6:
    enabled: false
EOF

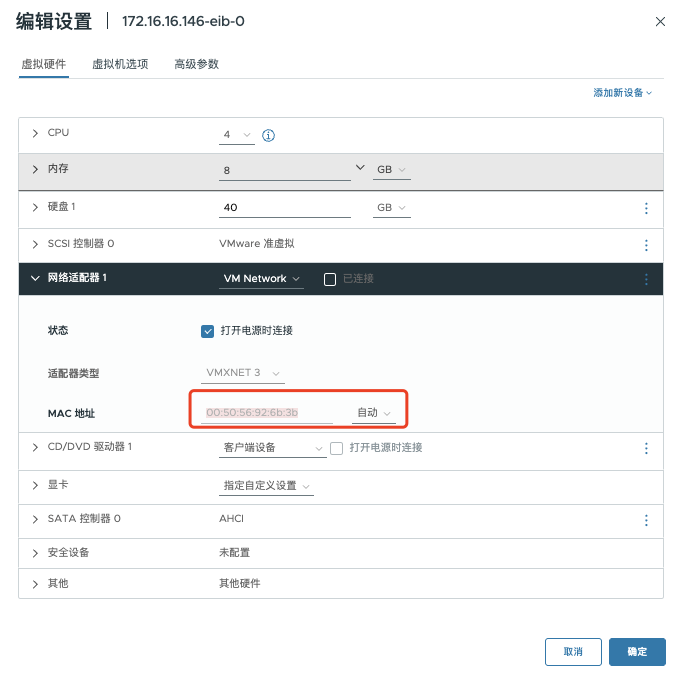

其中的 mac-address，可以先创建好虚拟机，然后在配置界面获取，VMware 界面如下：

准备 RKE2 配置文件：

mkdir -p $CONFIG_DIR/kubernetes/config

cat << EOF > $CONFIG_DIR/kubernetes/config/server.yaml
token: my-shared-secret
system-default-registry: registry.rancher.com
EOF

在 eib-iso-definition.yaml 中添加 Kubernetes/Rancher 配置：

...
kubernetes:
  version: v1.31.7+rke2r1
  network:
    apiVIP: 172.16.16.147
  manifests:
    urls:
    - https://github.com/cert-manager/cert-manager/releases/download/v1.15.3/cert-manager.yaml
    - http://172.16.16.140:8080/config/rancher-namespace.yaml
  helm:
    charts:
      - name: rancher
        version: 2.10.3
        repositoryName: rancher-prime
        valuesFile: rancher-values.yaml
        targetNamespace: cattle-system
        createNamespace: true
        installationNamespace: cattle-system
    repositories:
      - name: rancher-prime
        url:  https://charts.rancher.com/server-charts/prime
embeddedArtifactRegistry:
  images:
    - name: registry.rancher.com/rancher/backup-restore-operator:v6.0.0
    - name: registry.rancher.com/rancher/calico-cni:v3.29.0-rancher1
    - name: registry.rancher.com/rancher/cis-operator:v1.3.4
    - name: registry.rancher.com/rancher/flannel-cni:v1.4.1-rancher1
    - name: registry.rancher.com/rancher/fleet-agent:v0.11.2
    - name: registry.rancher.com/rancher/fleet:v0.11.2
    - name: registry.rancher.com/rancher/hardened-addon-resizer:1.8.20-build20241001
    - name: registry.rancher.com/rancher/hardened-calico:v3.29.0-build20241104
    - name: registry.rancher.com/rancher/hardened-cluster-autoscaler:v1.8.11-build20241014
    - name: registry.rancher.com/rancher/hardened-cni-plugins:v1.6.0-build20241022
    - name: registry.rancher.com/rancher/hardened-coredns:v1.11.3-build20241018
    - name: registry.rancher.com/rancher/hardened-dns-node-cache:1.23.1-build20241008
    - name: registry.rancher.com/rancher/hardened-etcd:v3.5.16-k3s1-build20241106
    - name: registry.rancher.com/rancher/hardened-flannel:v0.26.1-build20241107
    - name: registry.rancher.com/rancher/hardened-k8s-metrics-server:v0.7.1-build20241008
    - name: registry.rancher.com/rancher/hardened-kubernetes:v1.31.3-rke2r1-build20241121
    - name: registry.rancher.com/rancher/hardened-multus-cni:v4.1.3-build20241028
    - name: registry.rancher.com/rancher/hardened-whereabouts:v0.8.0-build20241011
    - name: registry.rancher.com/rancher/k3s-upgrade:v1.31.3-k3s1
    - name: registry.rancher.com/rancher/klipper-helm:v0.9.3-build20241008
    - name: registry.rancher.com/rancher/klipper-lb:v0.4.9
    - name: registry.rancher.com/rancher/kube-api-auth:v0.2.3
    - name: registry.rancher.com/rancher/kubectl:v1.31.1
    - name: registry.rancher.com/rancher/local-path-provisioner:v0.0.30
    - name: registry.rancher.com/rancher/machine:v0.15.0-rancher124
    - name: registry.rancher.com/rancher/mirrored-cluster-api-controller:v1.8.3
    - name: registry.rancher.com/rancher/nginx-ingress-controller:v1.10.5-hardened4
    - name: registry.rancher.com/rancher/prometheus-federator:v0.4.3
    - name: registry.rancher.com/rancher/pushprox-client:v0.1.4-rancher2-client
    - name: registry.rancher.com/rancher/pushprox-proxy:v0.1.4-rancher2-proxy
    - name: registry.rancher.com/rancher/rancher-agent:v2.10.1
    - name: registry.rancher.com/rancher/rancher-csp-adapter:v5.0.1
    - name: registry.rancher.com/rancher/rancher-webhook:v0.6.2
    - name: registry.rancher.com/rancher/rancher:v2.10.1
    - name: registry.rancher.com/rancher/rke-tools:v0.1.105
    - name: registry.rancher.com/rancher/rke2-cloud-provider:v1.31.2-0.20241016053446-0955fa330f90-build20241016
    - name: registry.rancher.com/rancher/rke2-runtime:v1.31.3-rke2r1
    - name: registry.rancher.com/rancher/rke2-upgrade:v1.31.3-rke2r1
    - name: registry.rancher.com/rancher/security-scan:v0.5.2
    - name: registry.rancher.com/rancher/shell:v0.3.0
    - name: registry.rancher.com/rancher/system-agent-installer-k3s:v1.31.3-k3s1
    - name: registry.rancher.com/rancher/system-agent-installer-rke2:v1.31.3-rke2r1
    - name: registry.rancher.com/rancher/system-agent:v0.3.11-suc
    - name: registry.rancher.com/rancher/system-upgrade-controller:v0.14.2
    - name: registry.rancher.com/rancher/ui-plugin-catalog:3.2.0
    - name: registry.rancher.com/rancher/kubectl:v1.20.2
    - name: registry.rancher.com/rancher/kubectl:v1.29.2
    - name: registry.rancher.com/rancher/shell:v0.1.24
    - name: registry.rancher.com/rancher/mirrored-ingress-nginx-kube-webhook-certgen:v1.4.1
    - name: registry.rancher.com/rancher/mirrored-ingress-nginx-kube-webhook-certgen:v1.4.3
    - name: registry.rancher.com/rancher/mirrored-ingress-nginx-kube-webhook-certgen:v1.4.4
    - name: registry.rancher.com/rancher/mirrored-ingress-nginx-kube-webhook-certgen:v20231226-1a7112e06
...

准备 Rancher Helm Chart Values 配置文件：

mkdir -p $CONFIG_DIR/kubernetes/helm/values

cat << EOF > $CONFIG_DIR/kubernetes/helm/values/rancher-values.yaml
hostname: eib-rancher.warnerchen.com
replicas: 1
bootstrapPassword: "xxx"
systemDefaultRegistry: registry.rancher.com
useBundledSystemChart: true
EOF

准备创建 cattle-system 命名空间文件：

mkdir -p $HOME/config/

cat << EOF > ~/config/rancher-namespace.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: cattle-system
EOF

启动一个 Nginx，使 EIB 构建 ISO 的时候能够获取所需文件：

podman run -d --name nginx -p 8080:80 -v $HOME/config:/usr/share/nginx/html/config -v $HOME/eib:/usr/share/nginx/html/eib/ harbor.warnerchen.com/library/nginx:mainline

最终目录结构：

root@test-0:~# tree $HOME/config $HOME/eib
/root/config
└── rancher-namespace.yaml
/root/eib
├── base-images
│   └── slemicro.iso
├── eib-iso-definition.yaml
├── kubernetes
│   ├── config
│   │   └── server.yaml
│   └── helm
│       └── values
│           └── rancher-values.yaml
└── network
    └── host1.local.yaml

开始构建 ISO：

podman run --rm -it --privileged -v $CONFIG_DIR:/eib \
registry.suse.com/edge/3.2/edge-image-builder:1.1.1 \
build --definition-file eib-iso-definition.yaml

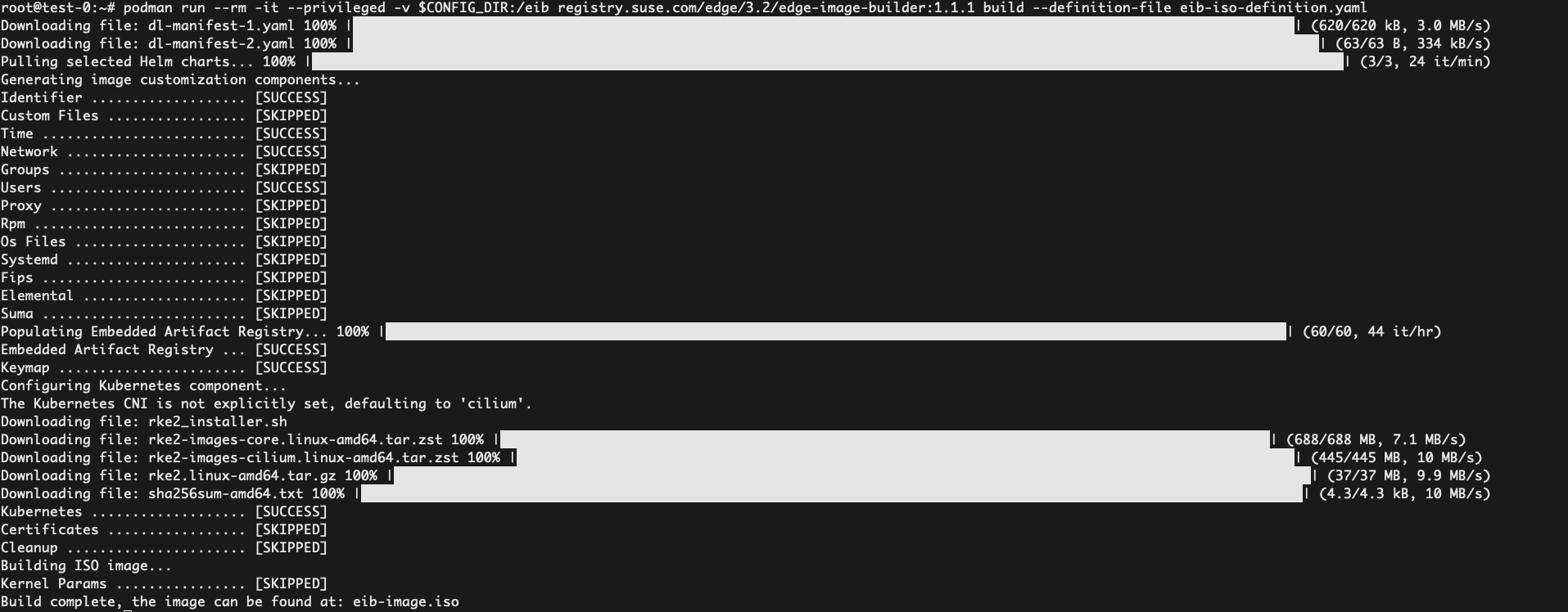

构建过程日志：

也可以查看 $HOME/eib/_build/build-xxx/*.log 检查日志。

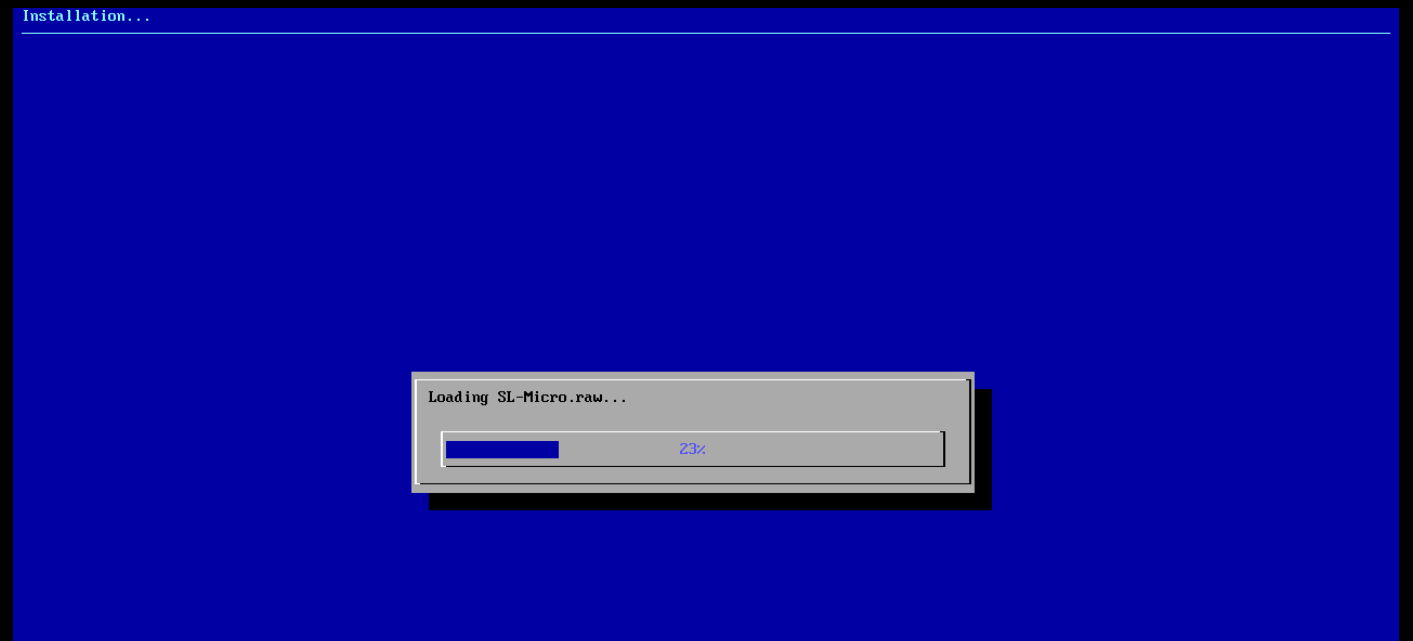

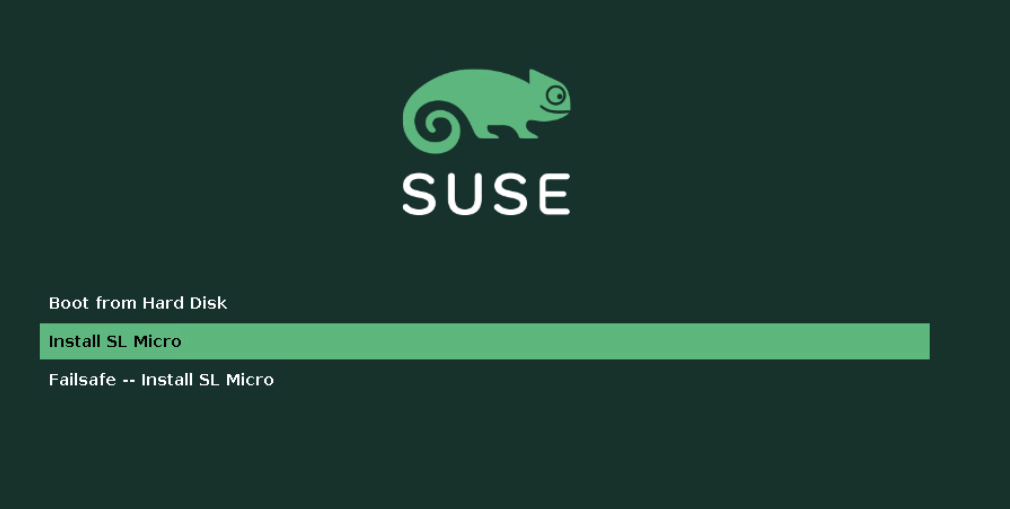

给虚拟机挂载 ISO，开机后执行安装：

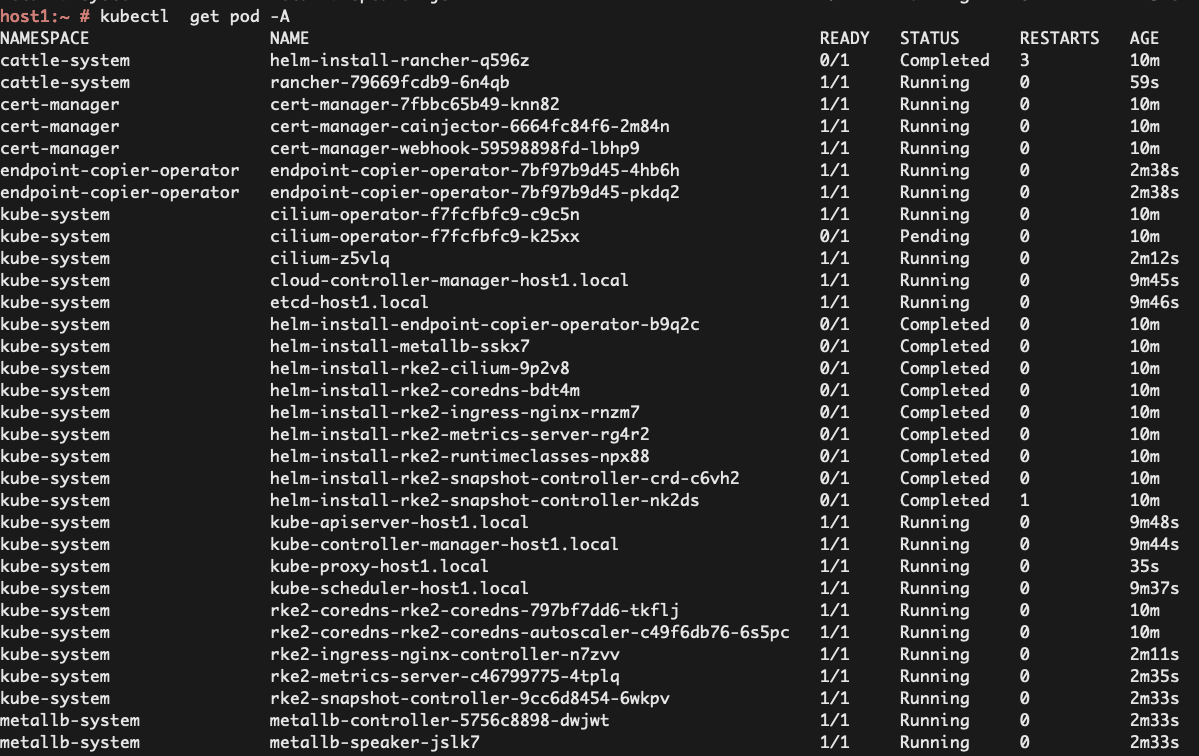

安装完成后，登陆到节点查看 Kubernetes 运行状况：

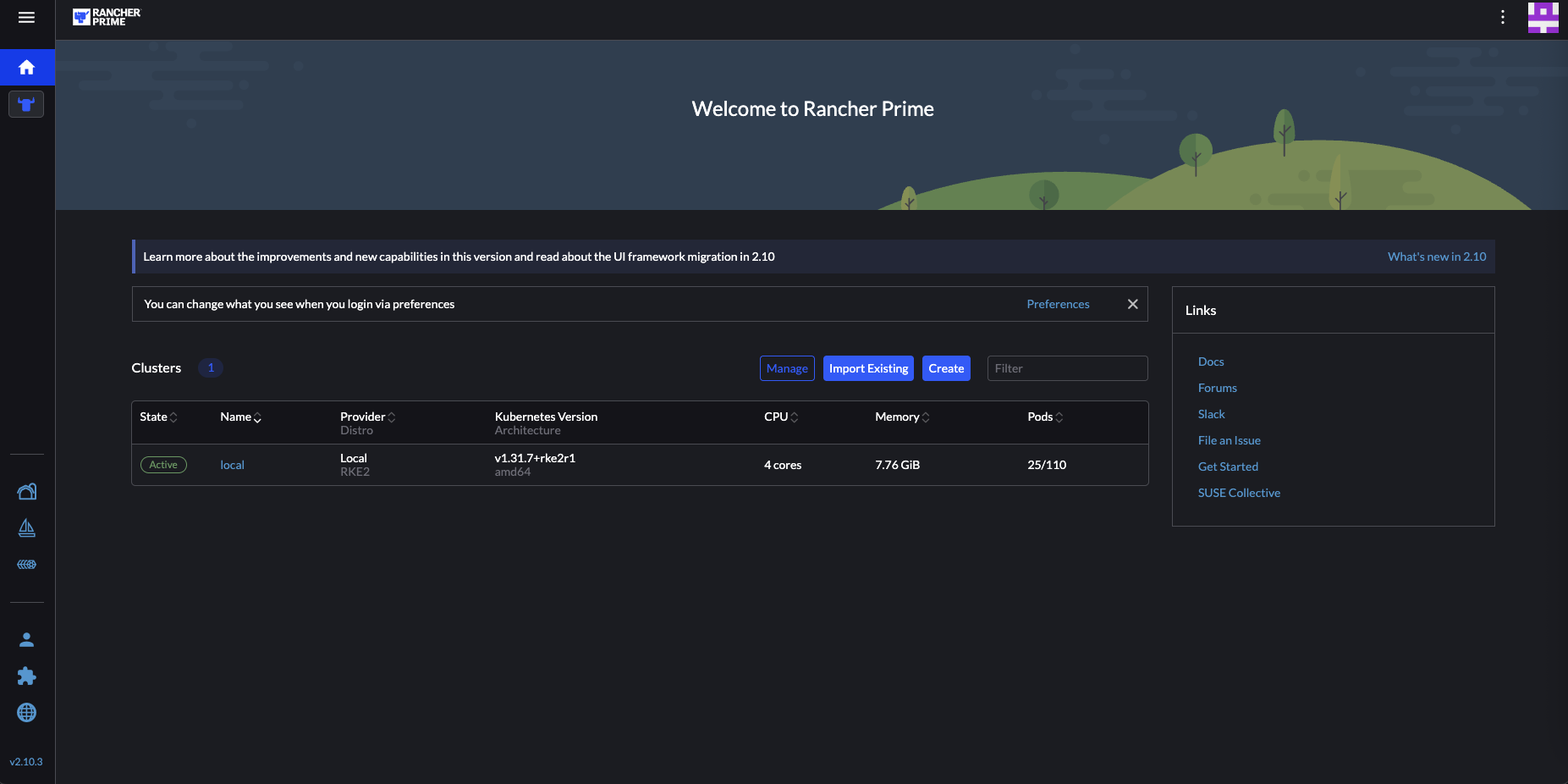

登陆 Rancher：
