Longhorn 配置 Storage Network

默认情况下，Longhorn 使用 Kubernetes 集群的默认 CNI 网络，这个网络会被整个集群中的其他工作负载共享，并且通常只涉及单个网络接口。

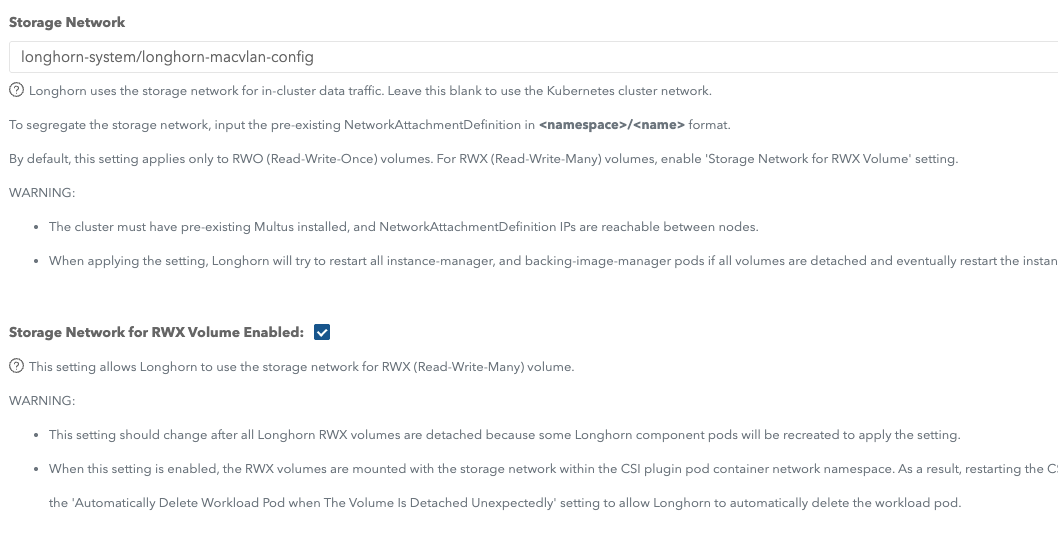

如果需要隔离 Longhorn 的集群内部数据流量（出于安全或性能考虑），Longhorn 支持通过 Storage Network 设置来实现这一点。

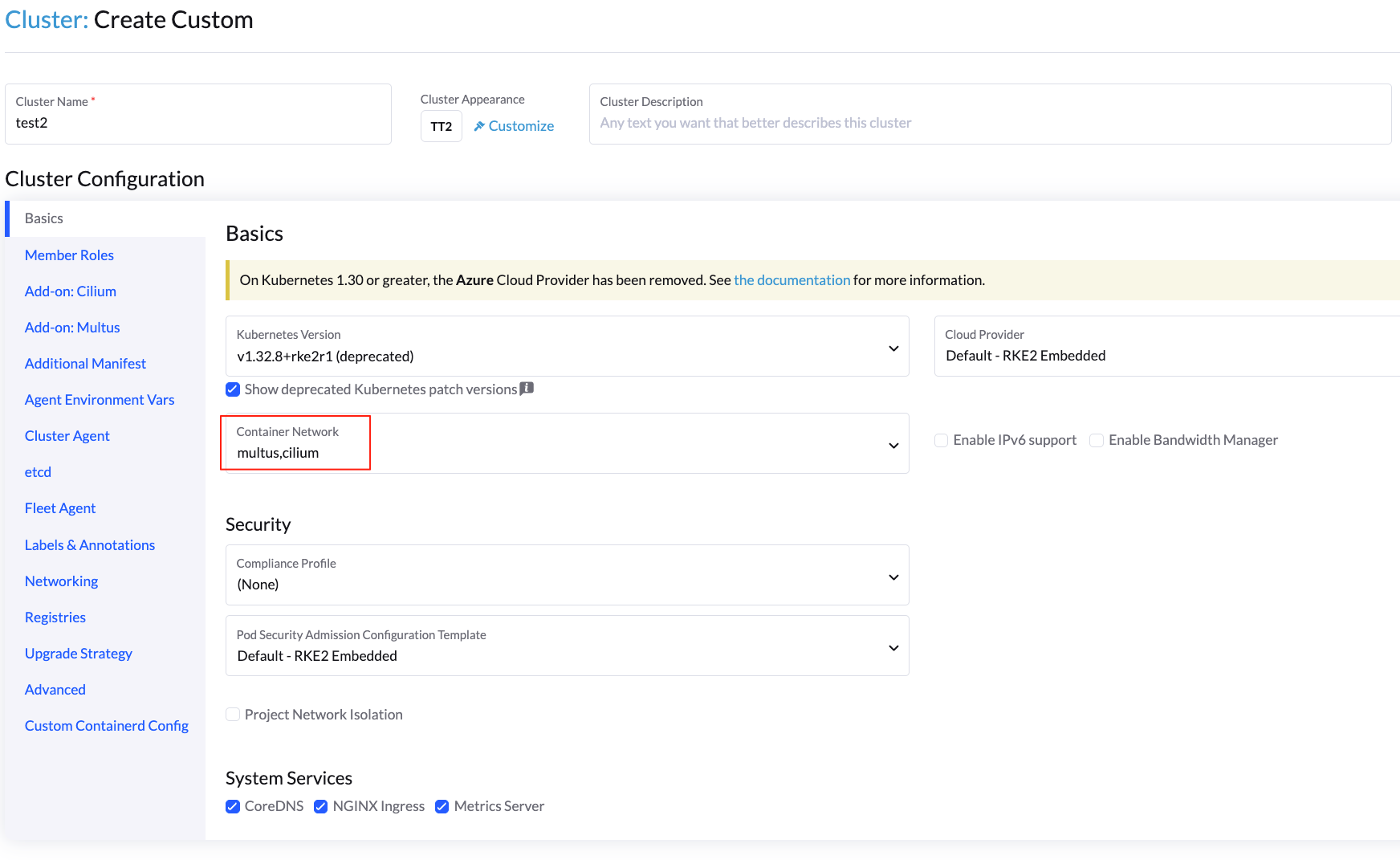

Storage Network 配置依赖 Multus，因此集群需要先安装 Multus。在 RKE2 集群创建初期，可以选择 Multus CNI。此处测试通过 RKE2 的自动部署和手动部署 Multus 两种方式。

前提条件

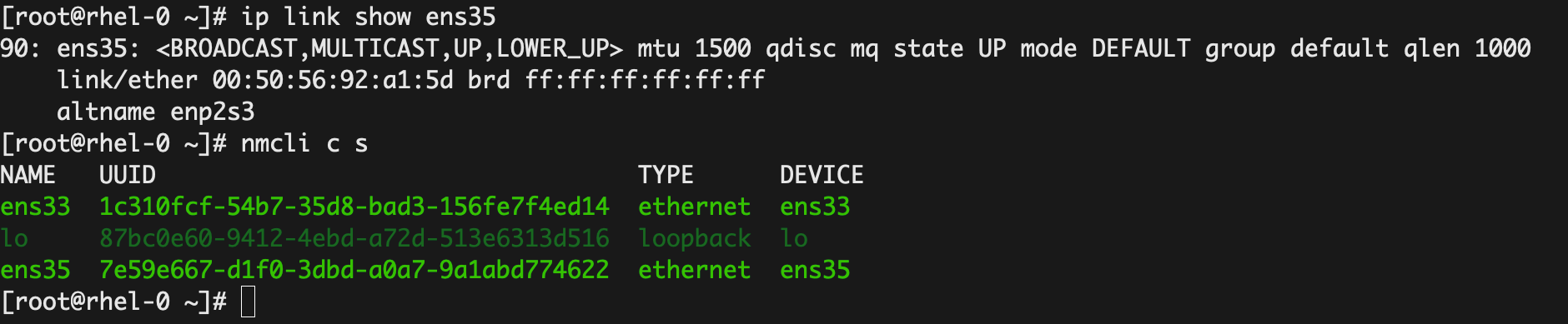

集群中所有节点需要新增一张网卡给 Storage Network 使用：

手动部署 Multus 方式

环境信息：

RKE2: v1.32.8+rke2r1
CNI: Cilium
Longhorn: v1.8.2
Multus: v4.2.3

配置 Storage Network 前挂载情况：

[root@rhel-1 ~]# mount | grep pvc
# RWX
# 此处 NFS Client 使用的是宿主机 IP

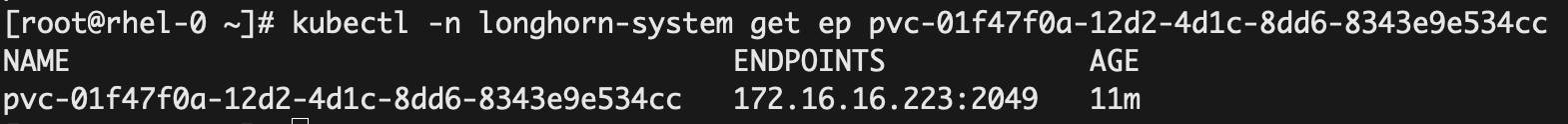

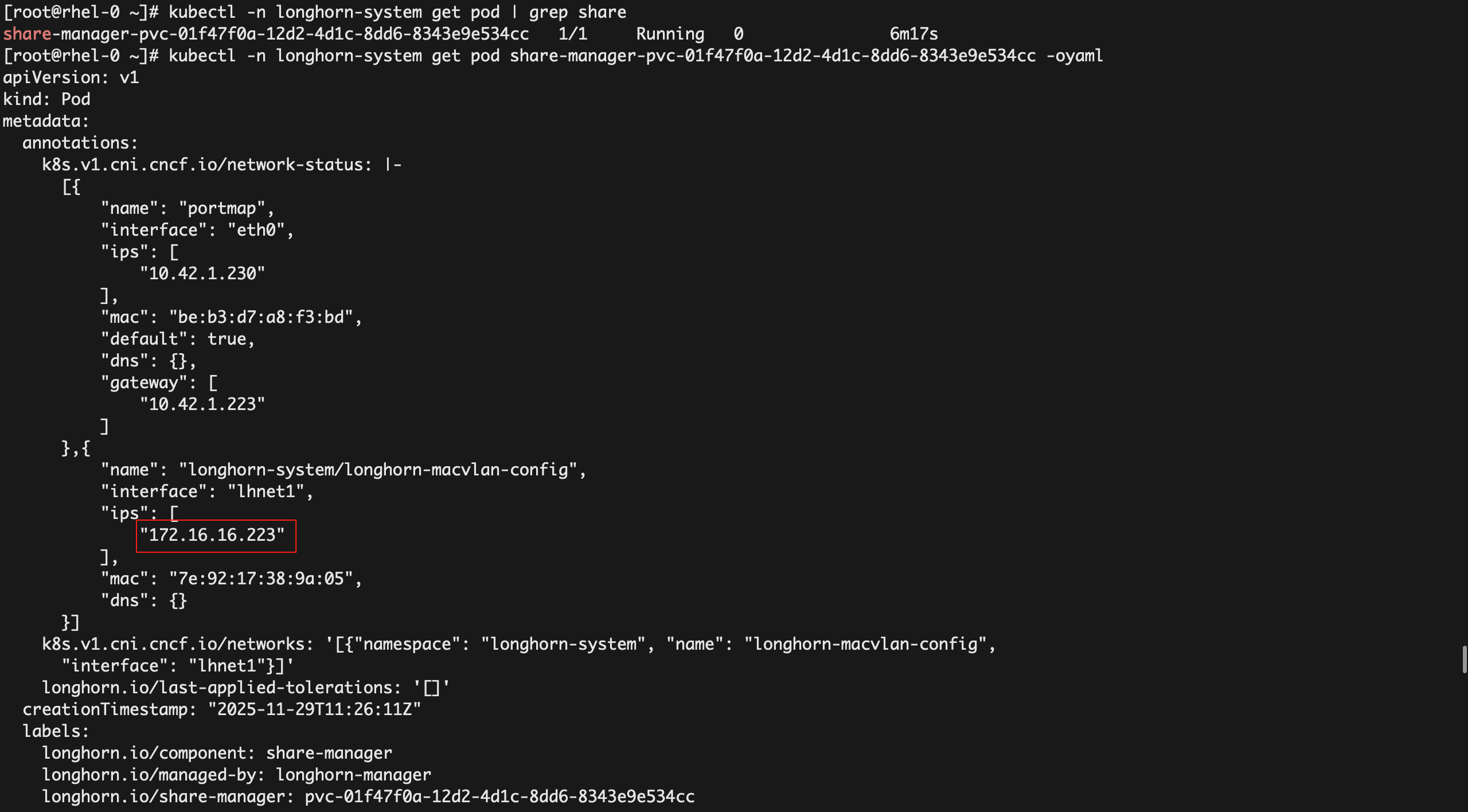

# 此处 NFS Server 使用的是 share-manager-pvc Pod 对应的 Service ClusterIP
10.43.217.7:/pvc-01f47f0a-12d2-4d1c-8dd6-8343e9e534cc on /var/lib/kubelet/plugins/kubernetes.io/csi/driver.longhorn.io/447ee02d670adfe4a48ae856b8eb99bd43bd6fa936594b10cdecc04fb0addbb3/globalmount type nfs4 (rw,relatime,vers=4.1,rsize=1048576,wsize=1048576,namlen=255,softerr,softreval,noresvport,proto=tcp,timeo=600,retrans=5,sec=sys,clientaddr=172.16.16.151,local_lock=none,addr=10.43.217.7)
10.43.217.7:/pvc-01f47f0a-12d2-4d1c-8dd6-8343e9e534cc on /var/lib/kubelet/pods/37e1e1e7-ead3-41ba-b6cc-1f548186a05b/volumes/kubernetes.io~csi/pvc-01f47f0a-12d2-4d1c-8dd6-8343e9e534cc/mount type nfs4 (rw,relatime,vers=4.1,rsize=1048576,wsize=1048576,namlen=255,softerr,softreval,noresvport,proto=tcp,timeo=600,retrans=5,sec=sys,clientaddr=172.16.16.151,local_lock=none,addr=10.43.217.7)

配置 Cilium

参考文档：https://docs.rke2.io/networking/multus_sriov#using-multus-with-cilium

安装 Multus 之前，由于此处 RKE2 版本为 v1.32.8+rke2r1，所以 Cilium 需要设置 exclusive 为 false：

cat <<EOF | kubectl apply -f -
apiVersion: helm.cattle.io/v1
kind: HelmChartConfig
metadata:
  name: rke2-cilium
  namespace: kube-system
spec:
  valuesContent: |-
    cni:
      exclusive: false
EOF

设置完成后，手动重启 Cilium：

1	kubectl -n kube-system rollout restart ds cilium

如果没有重启，后续配置 NAD 会不生效，这是由于 Cilium 会把 Multus 的 CNI 配置进行 Rename：

1	time=2025-11-28T02:13:54.197067708Z level=info msg="Renaming non-Cilium CNI configuration file" module=agent.infra.cni-config source=00-multus.conf destination=00-multus.conf.cilium_bak

安装 Multus

参考文档：https://github.com/k8snetworkplumbingwg/multus-cni/blob/master/docs/how-to-use.md#install-multus

此处安装 Thick 模式：

1	kubectl apply -f https://raw.githubusercontent.com/k8snetworkplumbingwg/multus-cni/master/deployments/multus-daemonset-thick.yml # thick (client/server) deployment

安装 CNI Plugin

此步骤所有 Worker 节点都需要操作。

参考文档：https://github.com/containernetworking/plugins

wget "https://github.com/containernetworking/plugins/releases/download/v1.8.0/cni-plugins-linux-amd64-v1.8.0.tgz"
tar -xzf cni-plugins-linux-amd64-v1.8.0.tgz \
    -C /opt/cni/bin \
    --exclude='LICENSE' \
    --exclude='README.md'

创建 NAD

此处使用 DHCP 方式下发 IP 给 Pod 使用，参考文档：https://www.cni.dev/plugins/current/ipam/dhcp/#network-configuration-reference

cat <<EOF | kubectl apply -f -
apiVersion: k8s.cni.cncf.io/v1
kind: NetworkAttachmentDefinition
metadata:
  name: longhorn-macvlan-config
  namespace: longhorn-system
spec:
  config: |
    {
        "cniVersion": "0.3.1",
        "type": "macvlan",
        "master": "ens35",
        "mode": "bridge",
        "ipam": {
            "type": "dhcp",
            "request": [
              {
                "skipDefault": true,
                "option": "subnet-mask"
              }
            ]
        }
    }
EOF

创建 DHCP DaemonSet

使用 DHCP 模式，在所有 Worker 节点需要启用 DHCP Daemon，此处使用 DaemonSet 快速启动：

cat <<EOF | kubectl apply -f -
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: kube-multus-dhcp
  namespace: kube-system
  labels:
    app: kube-multus-dhcp
spec:
  selector:
    matchLabels:
      app: kube-multus-dhcp
  updateStrategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 1
  template:
    metadata:
      labels:
        app: kube-multus-dhcp
    spec:
      hostNetwork: true
      nodeSelector:
        node-role.kubernetes.io/worker: "true"
      initContainers:
        - name: kube-multus-cleanup-dhcp-socket
          image: harbor.warnerchen.com/library/busybox:latest
          command: ["rm", "-f", "/run/cni/dhcp.sock"]
          securityContext:
            privileged: true
          volumeMounts:
            - name: socketpath
              mountPath: /host/run/cni
      containers:
        - name: kube-multus-dhcp
          image: harbor.warnerchen.com/library/busybox:latest
          command: ["/opt/cni/bin/dhcp", "daemon"]
          securityContext:
            privileged: true
          volumeMounts:
            - name: binpath
              mountPath: /opt/cni/bin
            - name: socketpath
              mountPath: /run/cni
            - name: netnspath
              mountPath: /var/run/netns
              mountPropagation: HostToContainer
      volumes:
        - name: binpath
          hostPath:
            path: /opt/cni/bin
        - name: socketpath
          hostPath:
            path: /run/cni
        - name: netnspath
          hostPath:
            path: /run/netns
EOF

等待 Pod 正常运行后，在节点检查是否有 dhcp.sock：

1 2	[root@rhel-0 ~]# ls /run/cni/ dhcp.sock

测试 NAD 是否可用

创建一个 DaemonSet，测试每个节点都可以分配 IP，并相互进行通信：

cat <<EOF | kubectl apply -f -
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: multus-nad-test
  namespace: default
spec:
  selector:
    matchLabels:
      app: multus-nad-test
  template:
    metadata:
      labels:
        app: multus-nad-test
      annotations:
        k8s.v1.cni.cncf.io/networks: longhorn-system/longhorn-macvlan-config
    spec:
      containers:
      - name: multus-nad-test
        image: harbor.warnerchen.com/library/busybox:latest
        command: ["sh", "-c", "sleep 360000"]
EOF

[root@rhel-0 ~]# kubectl get pod
NAME                    READY   STATUS    RESTARTS   AGE
multus-nad-test-jbxcz   1/1     Running   0          69s
multus-nad-test-s8zqx   1/1     Running   0          69s

[root@rhel-0 ~]# kubectl exec -it multus-nad-test-jbxcz -- ip -4 a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue qlen 1000
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
2: net1@if90: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue qlen 1000
    inet 172.16.16.201/24 brd 172.16.16.255 scope global net1
       valid_lft forever preferred_lft forever
91: eth0@if92: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue
    inet 10.42.0.71/32 scope global eth0
       valid_lft forever preferred_lft forever

[root@rhel-0 ~]# kubectl exec -it multus-nad-test-s8zqx -- ip -4 a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue qlen 1000
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
2: net1@if68: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue qlen 1000
    inet 172.16.16.206/24 brd 172.16.16.255 scope global net1
       valid_lft forever preferred_lft forever
69: eth0@if70: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue
    inet 10.42.1.31/32 scope global eth0
       valid_lft forever preferred_lft forever

[root@rhel-0 ~]# kubectl exec -it multus-nad-test-jbxcz -- ip r
default via 10.42.0.163 dev eth0
10.42.0.163 dev eth0 scope link
172.16.16.0/24 dev net1 scope link  src 172.16.16.201

[root@rhel-0 ~]# kubectl exec -it multus-nad-test-jbxcz -- ping -c 3 172.16.16.206
PING 172.16.16.206 (172.16.16.206): 56 data bytes
64 bytes from 172.16.16.206: seq=0 ttl=64 time=0.435 ms
64 bytes from 172.16.16.206: seq=1 ttl=64 time=0.211 ms
64 bytes from 172.16.16.206: seq=2 ttl=64 time=0.181 ms

--- 172.16.16.206 ping statistics ---
3 packets transmitted, 3 packets received, 0% packet loss
round-trip min/avg/max = 0.181/0.275/0.435 ms

如无问题，可以删除：

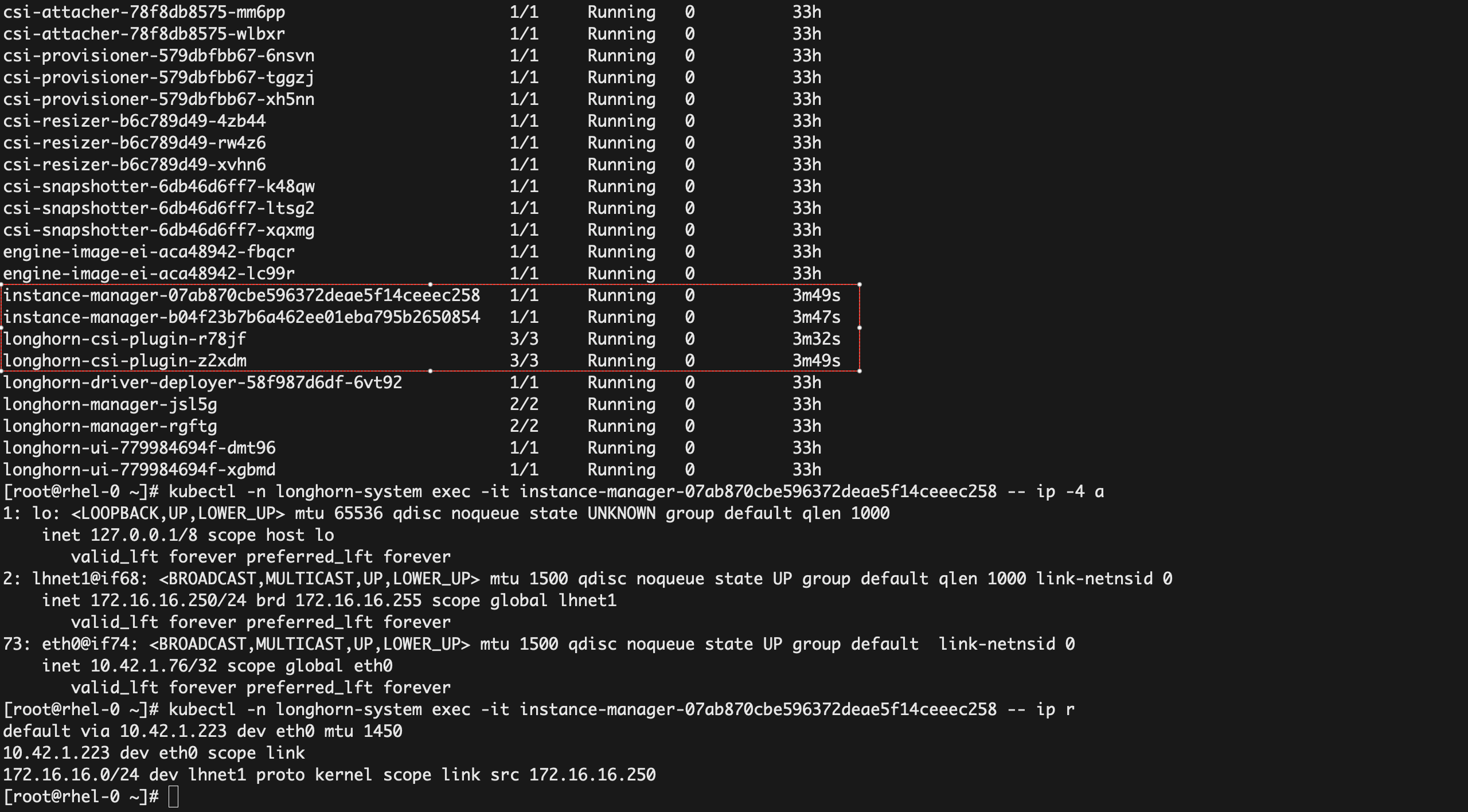

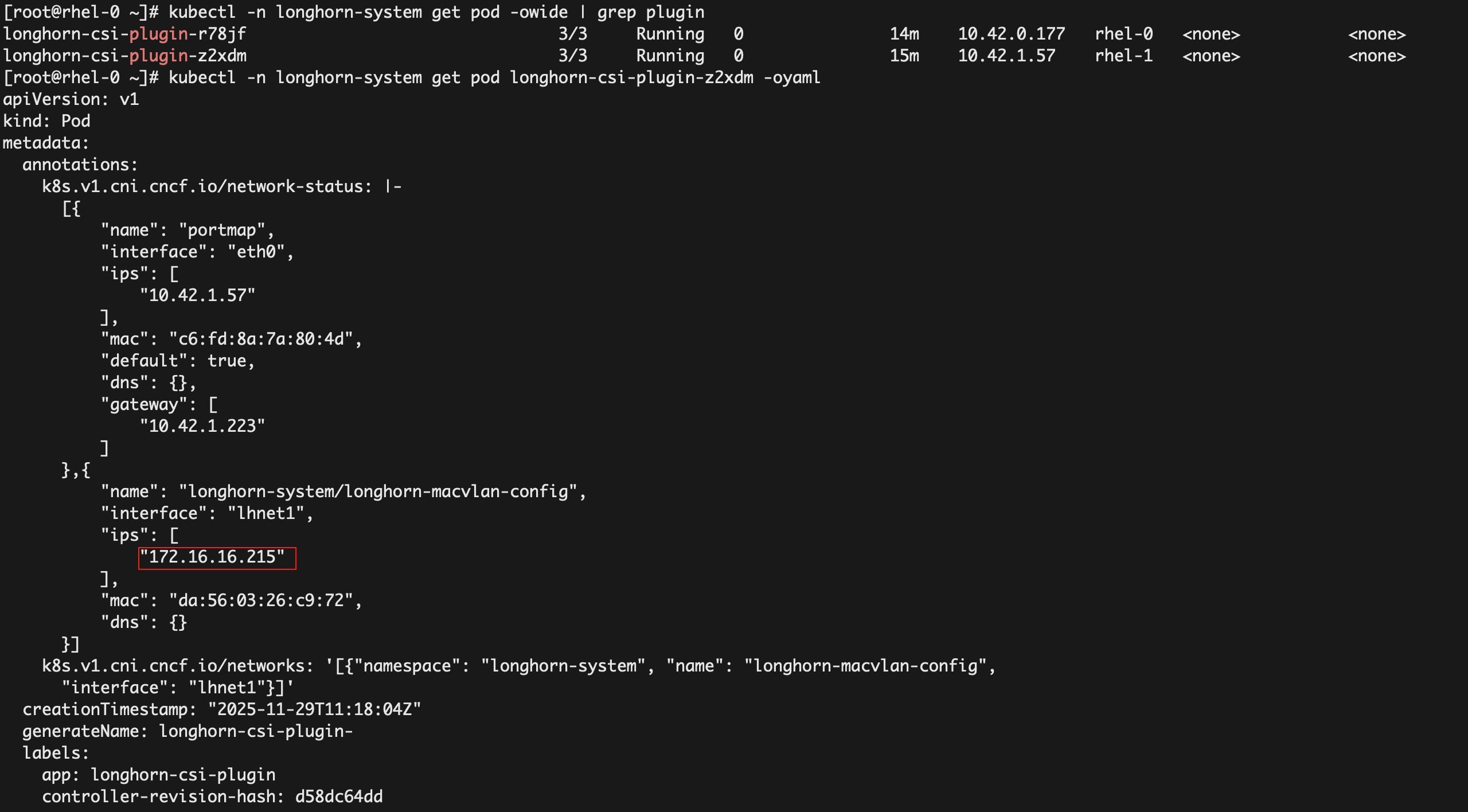

1	kubectl delete ds multus-nad-test
