场景说明
在实际环境中，集群可能同时使用多个泛域名，例如：
*.warnerchen.com*.avatar-poc.k8s.warnerchen.com
不同泛域名需要绑定不同的 TLS 证书。基于 RKE2 默认集成的 Traefik，并启用 Kubernetes Gateway API，可以通过配置多个 listener 来实现按域名匹配证书。
创建 TLS Secret
在启用了 rke2-traefik 的 RKE2 集群中，分别为两个泛域名创建证书 Secret：
1
2
3
4
5
6
7
| kubectl -n kube-system create secret tls warnerchen-com-tls \
--cert=tls.crt \
--key=tls.key
kubectl -n kube-system create secret tls ext-warnerchen-com-tls \
--cert=tls.crt \
--key=tls.key
|
配置 RKE2 Traefik（HelmChartConfig）
通过 HelmChartConfig 为 RKE2 Traefik 配置多个 HTTPS listener，并分别绑定不同的证书。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
| cat <<EOF | kubectl apply -f -
apiVersion: helm.cattle.io/v1
kind: HelmChartConfig
metadata:
name: rke2-traefik
namespace: kube-system
spec:
valuesContent: |-
providers:
kubernetesGateway:
enabled: true
gateway:
listeners:
web:
port: 8000
protocol: HTTP
namespacePolicy:
from: All
websecure:
port: 8443
protocol: HTTPS
hostname: "*.warnerchen.com"
namespacePolicy:
from: All
mode: Terminate
certificateRefs:
- kind: Secret
name: warnerchen-com-tls
group: ""
websecure-ext:
port: 8443
protocol: HTTPS
hostname: "*.avatar-poc.k8s.warnerchen.com"
namespacePolicy:
from: All
mode: Terminate
certificateRefs:
- kind: Secret
name: ext-warnerchen-com-tls
group: ""
EOF
|
也可以直接写入 Control Plane 节点的 /var/lib/rancher/rke2/server/manifests/rke2-traefik-config.yaml

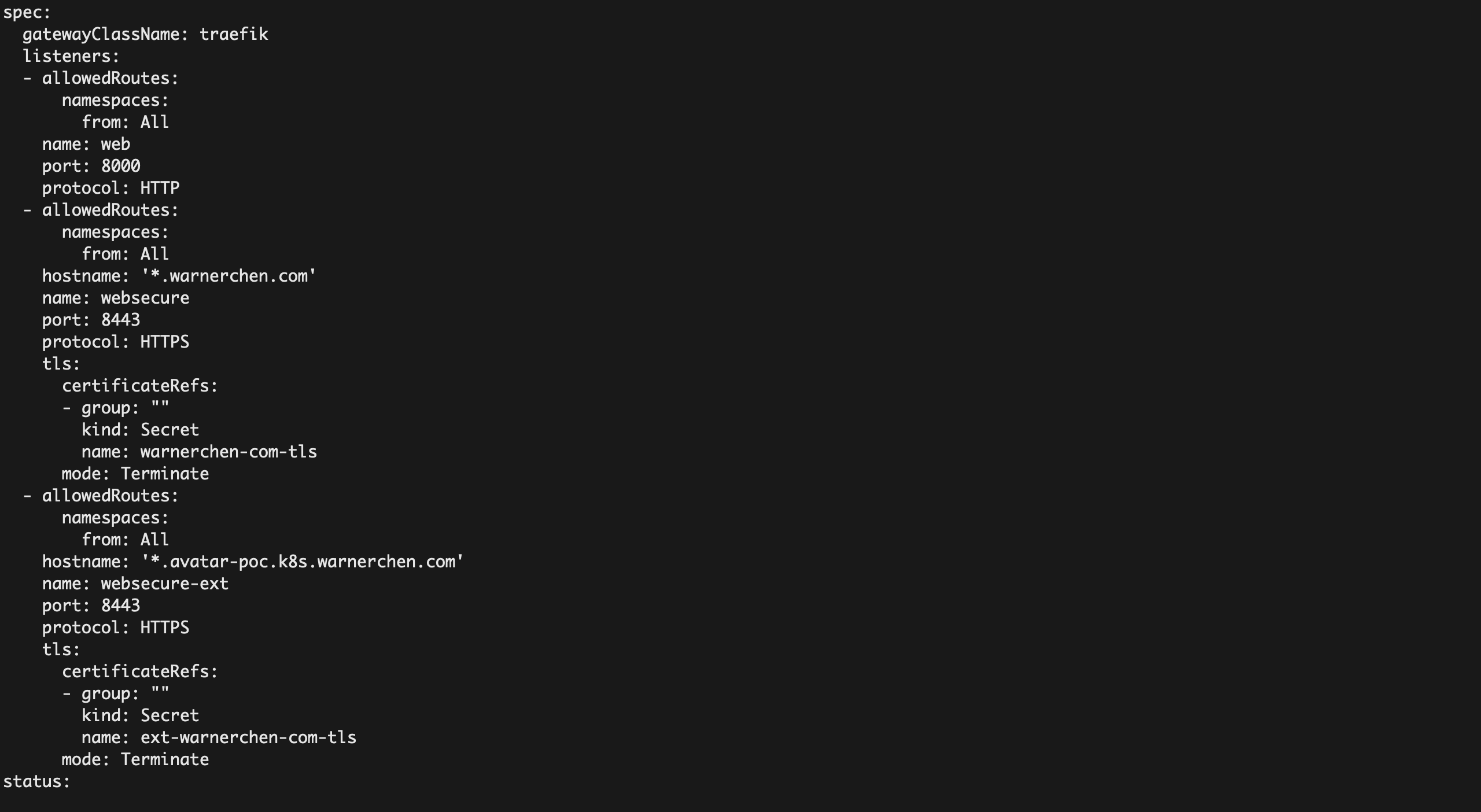

验证 Gateway 配置
确认 Traefik Gateway 已正确加载配置：
1
| kubectl -n kube-system get gateway traefik-gateway -oyaml
|
创建测试 Workload
1
2
3
4
5
6
7
8
| kubectl create deployment nginx \
--image harbor.warnerchen.com/library/nginx:mainline
kubectl create deployment nginx-ext \
--image harbor.warnerchen.com/library/nginx:mainline
kubectl expose deployment nginx --port 80
kubectl expose deployment nginx-ext --port 80
|
创建 HTTPRoute
分别为两个域名创建 HTTPRoute，并绑定到不同的 listener：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
| cat <<EOF | kubectl apply -f -
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
name: nginx
namespace: default
spec:
parentRefs:
- name: traefik-gateway
namespace: kube-system
sectionName: websecure
hostnames:
- nginx.warnerchen.com
rules:
- matches:
- path:
type: PathPrefix
value: /
backendRefs:
- name: nginx
port: 80
---
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
name: nginx-ext
namespace: default
spec:
parentRefs:
- name: traefik-gateway
namespace: kube-system
sectionName: websecure-ext
hostnames:
- nginx.avatar-poc.k8s.warnerchen.com
rules:
- matches:
- path:
type: PathPrefix
value: /
backendRefs:
- name: nginx-ext
port: 80
EOF
|

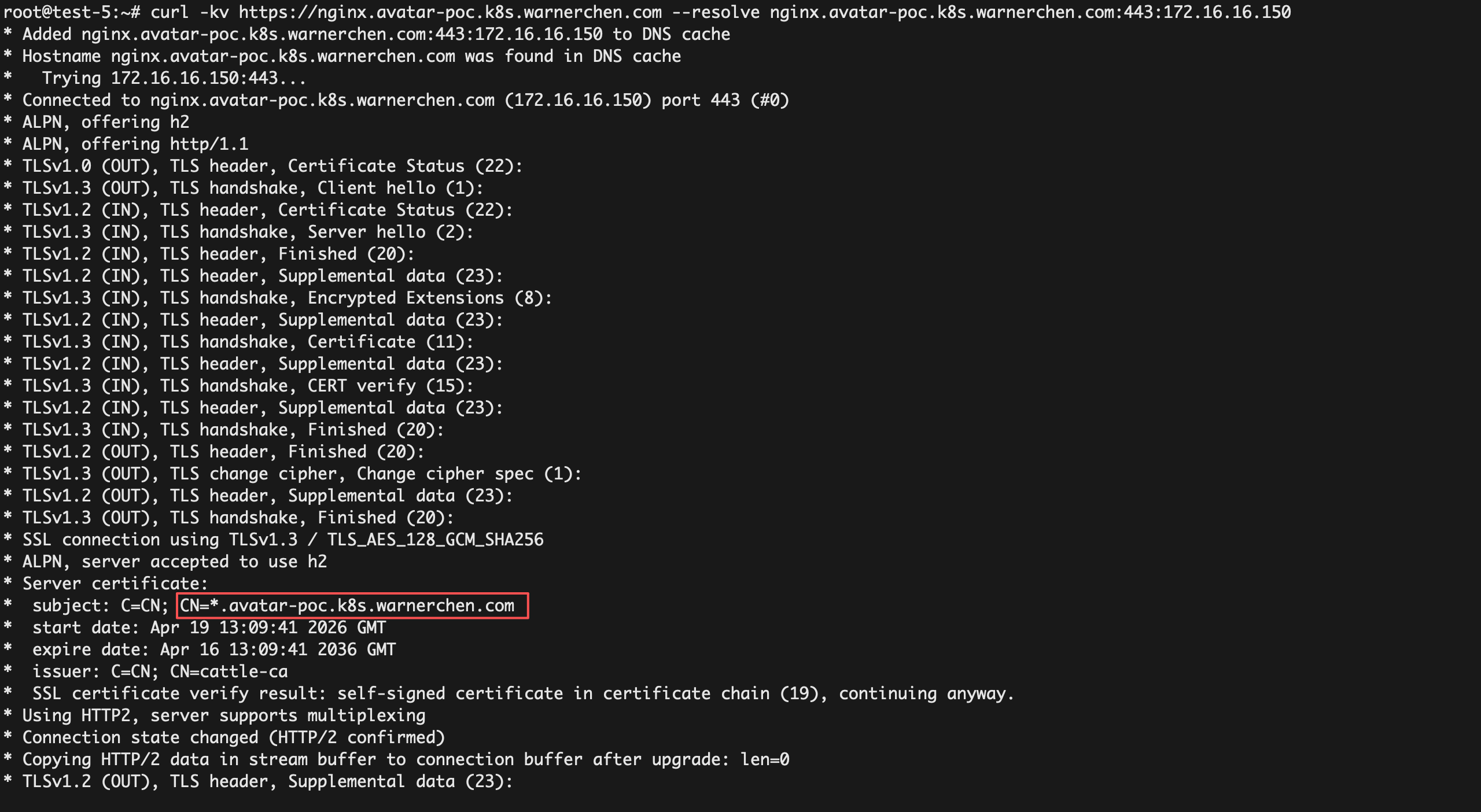

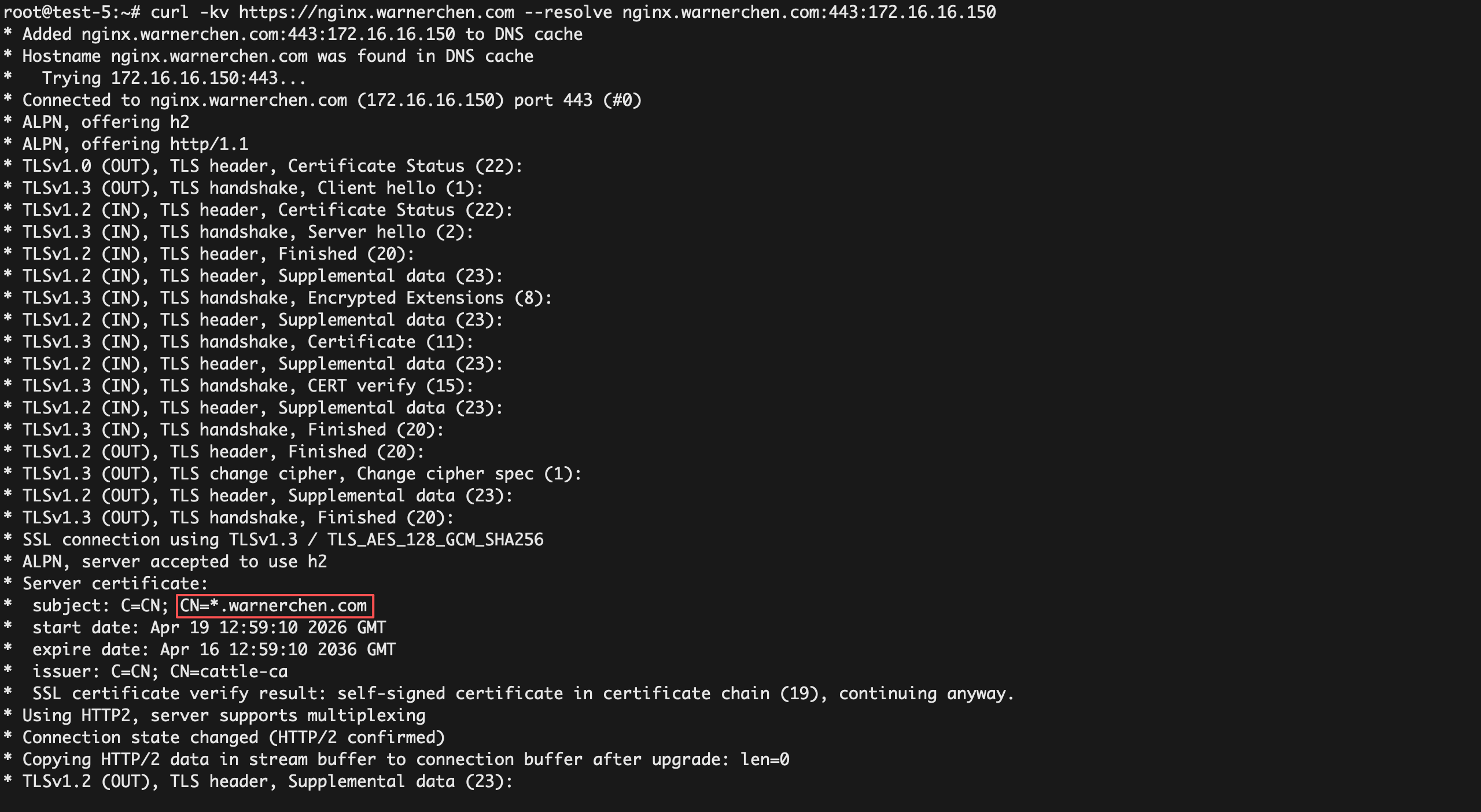

验证结果
访问两个域名，验证是否分别使用对应证书：
